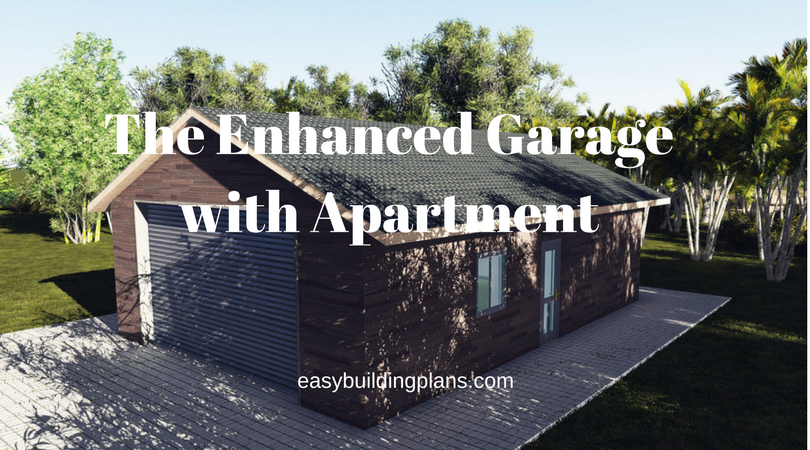

The Enhanced Garage with Apartment

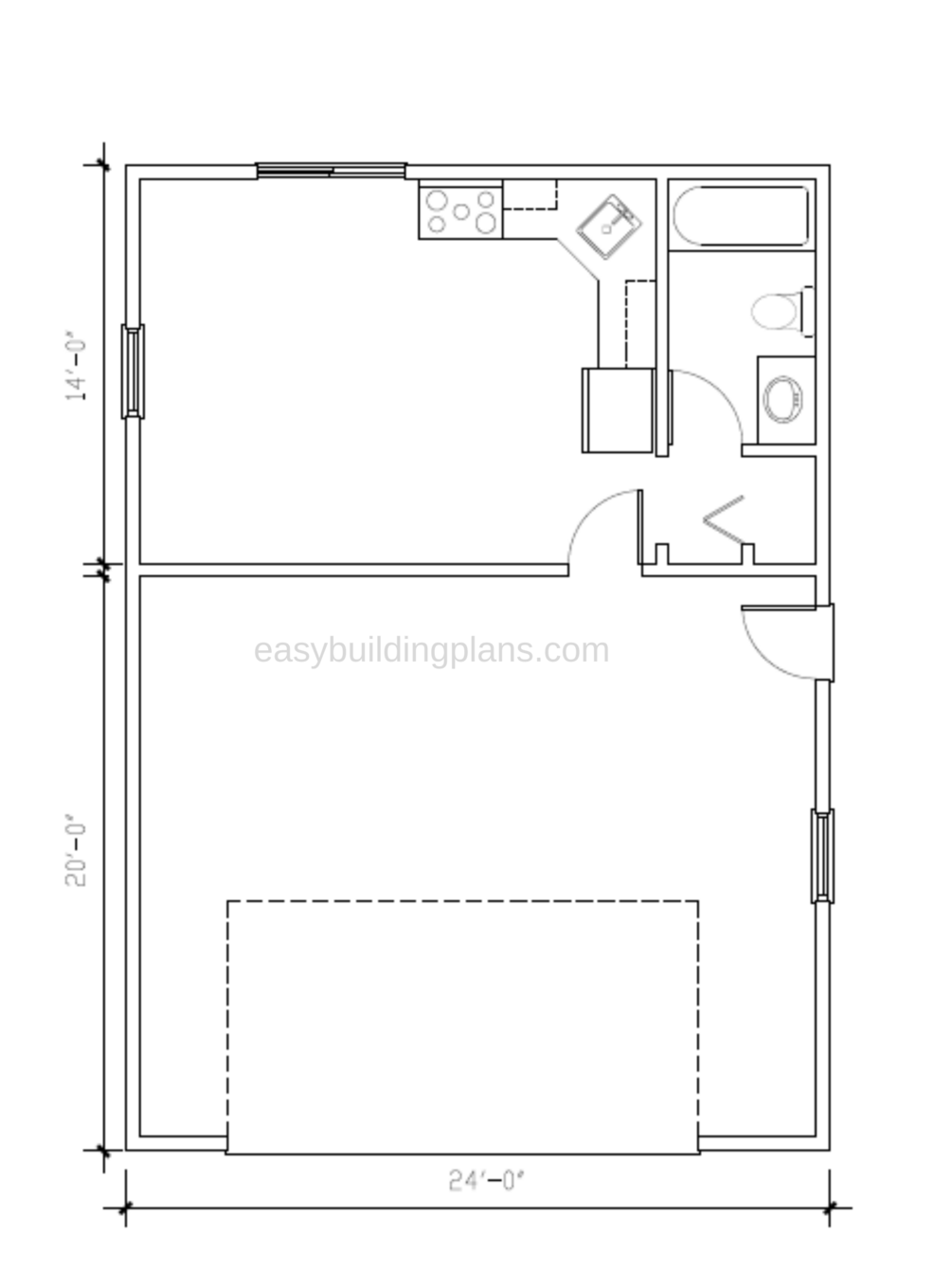

This is a 20 x 24 foot two car garage with a 14 x 24 foot complete studio apartment at the rear., toggle button below image to see the floor plan.

What you get: Floor plan, foundation plans, roof framing plan, a section, connection details, general specifications.

The wall framing is 2″x 6″, the roof is pre-manufactured trusses, the floors reinforced concrete slab, the foundation stem walls extend 3″above the slab. Simpson framing anchors and anchor bolts are used in the framing. Plans are emailed as PDF files that may be printed out full size, 24"x 36" at any blueprint shop.

Questions? contact: easybuildingplans.com
